GPU Server SSH Tutorial

For machine learning applications, Prof. Wang left our class a 2017 Titan Xp GPU Server for training. Training machine learning models can be extremely time consuming and resource gating for personal computers. Not to mention, machine learning libraries such as Tensorflow, are optimized for NVidia Cuda cores. Developing on remote machines in the past used to be a pain, but now with IDEs like VSCode, we can work on code on remote servers as if they were running on our personal machines. To do this we will need to complete the following steps.

  1. Create an .ssh/config file with all of Temple's servers that we wish to tunnel through.
  2. Create an ssh key and add it to each server so that we don't need to type in a password everytime we change code.
  3. git clone your project on the cis-wangstu1 server using another ssh key so that we can commit and push code to GitHub without personal access tokens.
  4. Setup VSCode for remote code editing.

1. SSH config file

On your Mac or Linux PC, open up your terminal and run the following command (unless you already have an .ssh/config file.)

touch ~/.ssh/config

This command creates an empty config text file. Next we will populate it with the list of Temple Servers.

Use nano or any text editor you prefer to copy and paste the following.

Host cis-linux2.temple.edu
HostName cis-linux2.temple.edu
User tug54949
IdentityFile ~/.ssh/id_rsa

Host wang
HostName cis-wangstu1
ProxyJump cis-linux2.temple.edu
User tug54949
IdentityFile ~/.ssh/id_rsa

Of course replace your User name with your AccessNet name.

Next, notice that we have an IdentityFile listed in the config file. This is the path to our ssh key, but we haven't actually created this yet. We do this by running ssh-keygen.

2. Create SSH Key and add it to each server.

ssh-keygen
save your key
Generating public/private rsa key pair.
Enter file in which to save the key (/Users/ianapplebaum/.ssh/id_rsa):

You can skip all of the steps by hitting enter.

successful creation of key
Generating public/private rsa key pair.
Enter file in which to save the key (/Users/ianapplebaum/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /Users/ianapplebaum/.ssh/id_rsa.
Your public key has been saved in id_rsa.pub.
The key fingerprint is:
SHA256:kxdpmge4naR5MduBlrGu5ndLACgQ5sL6VpgkjuTz81A ianapplebaum@Ian-Applebaums-MacBook-Pro.local
The key's randomart image is:
+---[RSA 3072]----+
|oo . |
|+. . . = . |
|o+o . o X = |
|Bo + X % o |
|o+o .E+ S + |
| .o.. o = |
| o+ o . |
| . +o ... |
| ... ... |
+----[SHA256]-----+
MacOS Ventura

If you are on MacOS Ventura or above you'll need to edit your Mac's ssh config file using sudo privlages. See OSXDaily's How to Fix SSH Not Working on MacOS Ventura.

Now we need to copy this key to each server, this part is tedious, but worth it. We need to run ssh-copy-id on cis-linux2, and cis-wangstu1 in that order.

SSH Key from 3296

If you already have an SSH key setup from the 3296 Software Design course, you can just use that one and copy it to cis-wangstu1.

You'll be prompted to enter your password after running each command.

  1. ssh-copy-id -i ~/.ssh/id_rsa.pub cis-linux2.temple.edu
  2. ssh-copy-id -i ~/.ssh/id_rsa.pub wang

You should now be able to freely ssh into each server without a password. Try it!

Now lets clone the project repository on cis-wangstu1.

3. git clone the repo on the GPU Server

First we need to ssh into cis-wangstu1.

ssh wang

You should see the following to know that you are logged into the correct server.

#######
# # # ##### ###### #### ##### ##### # # ######
# # # # # # # # # # # # #
##### ## # # ##### # # # ###### #####
# ## ##### # # # # # # #
# # # # # # # # # # # #
####### # # # ###### #### # # # # ######

# #
# # # # ###### # # ##### ###### #### ##### ###### #####
# # ## # # # # # # # # # # # # #
# # # # # ##### ## # # ##### # # ##### # #
# # # # # # ## ##### # # # # # #
# # # ## # # # # # # # # # # #
##### # # ###### # # # ###### #### # ###### #####

Next we will create another ssh key that will be used to clone the GitHub repository securely.

ssh-keygen
save your key
Generating public/private rsa key pair.
Enter file in which to save the key (/Users/ianapplebaum/.ssh/id_rsa):

You can skip all of the steps by hitting enter.

successful creation of key
Generating public/private rsa key pair.
Enter file in which to save the key (/Users/ianapplebaum/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /Users/ianapplebaum/.ssh/id_rsa.
Your public key has been saved in id_rsa.pub.
The key fingerprint is:
SHA256:kxdpmge4naR5MduBlrGu5ndLACgQ5sL6VpgkjuTz81A ianapplebaum@Ian-Applebaums-MacBook-Pro.local
The key's randomart image is:
+---[RSA 3072]----+
|oo . |
|+. . . = . |
|o+o . o X = |
|Bo + X % o |
|o+o .E+ S + |
| .o.. o = |
| o+ o . |
| . +o ... |
| ... ... |
+----[SHA256]-----+

You'll need to copy your public key to your clipboard.

pbcopy < /Users/YOUR_USER_DIRECTORY/.ssh/id_rsa.pub

With your public key copied to your clipboard login to https://github.com Tap on your profile in the top right corner as seen in Figure 1.1 and click Settings. You will then navigate to the SSH and GPG Keys menu on the Settings page. click "New SSH Key" and paste your public key that should be on your clipboard.

Figure 1.1 Navigate to Settings page.

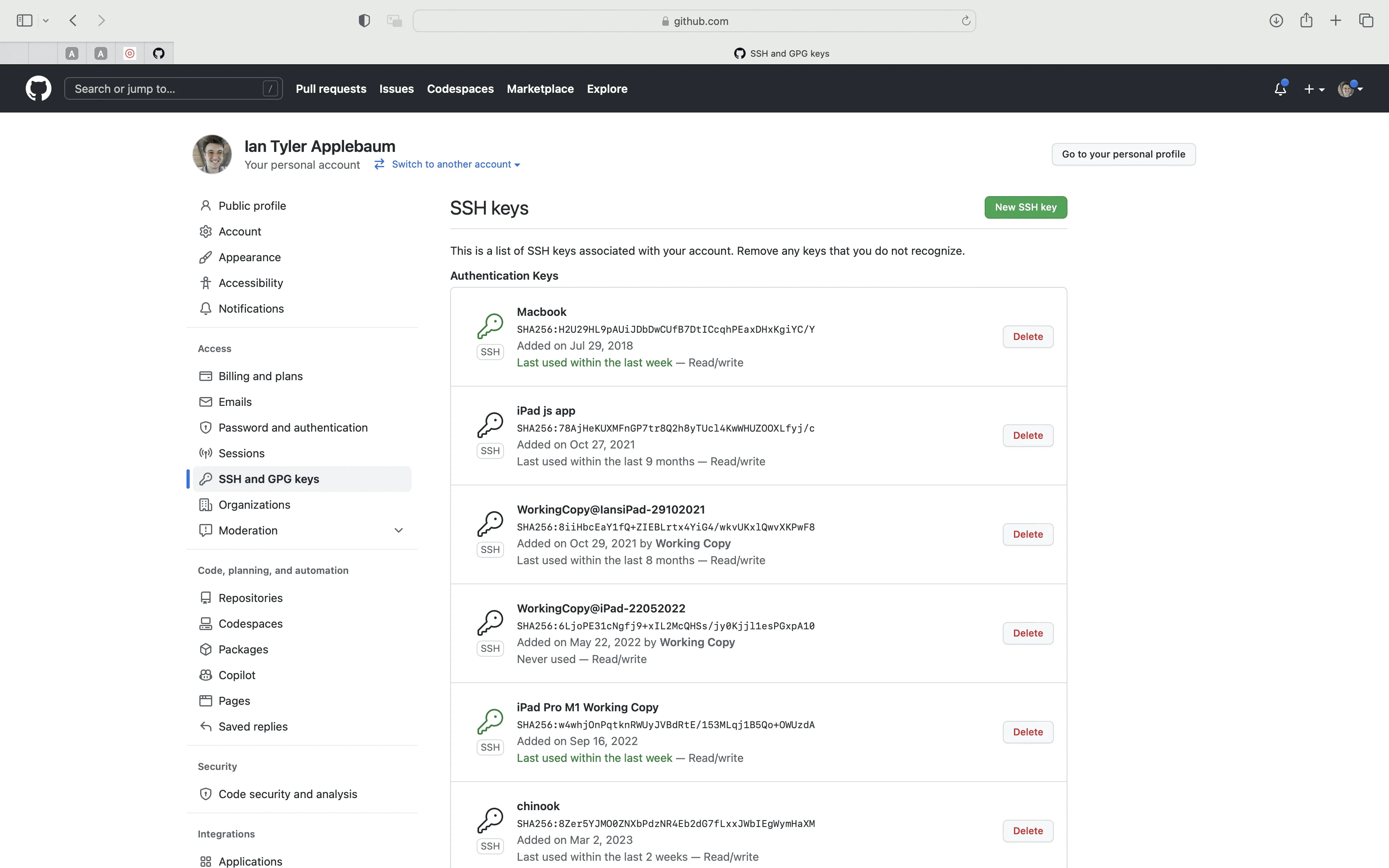

Figure 1.2 Navigate to SSH and GPG Keys.

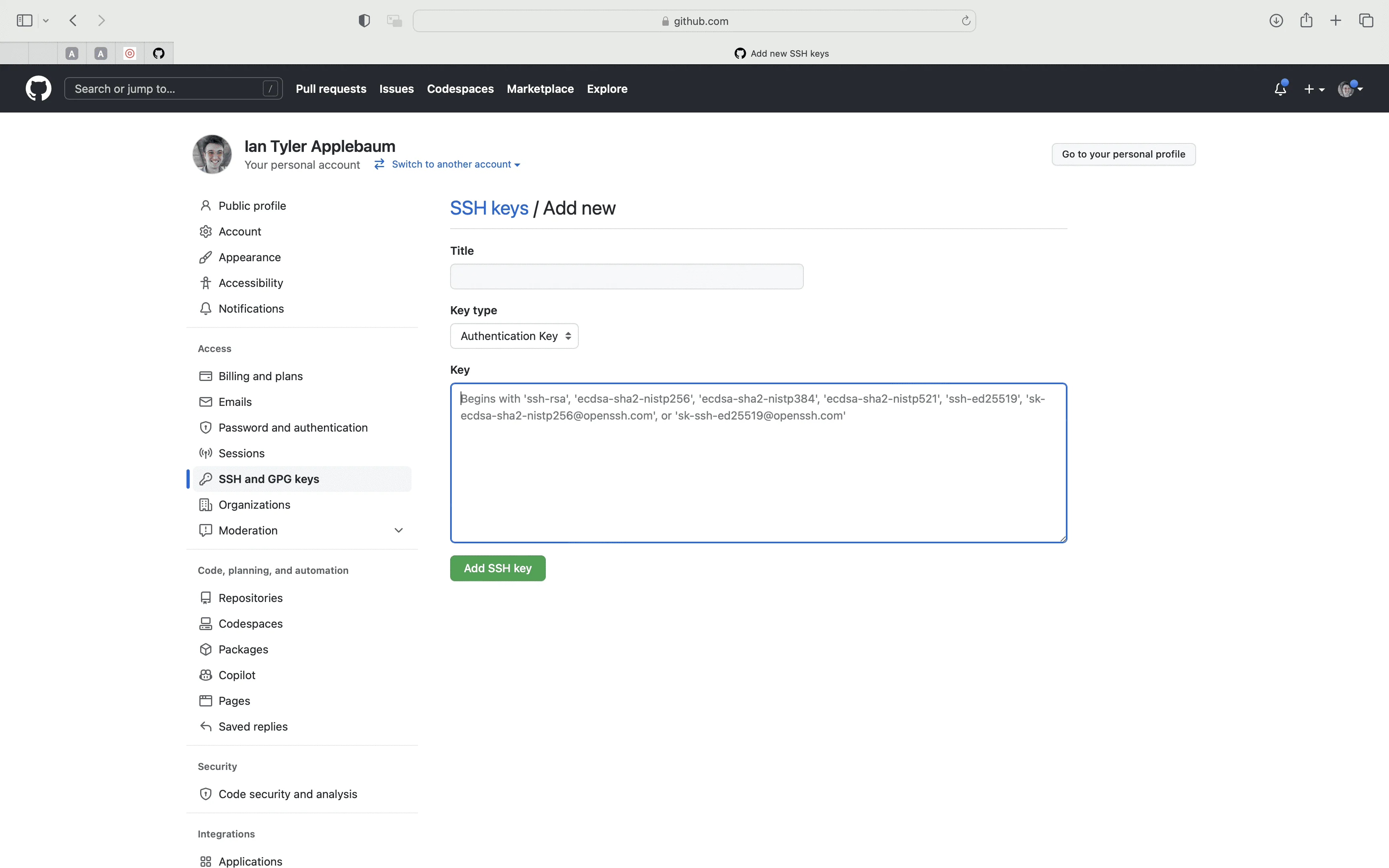

Figure 1.3 Paste SSH Key.

You may now clone your projects using SSH.

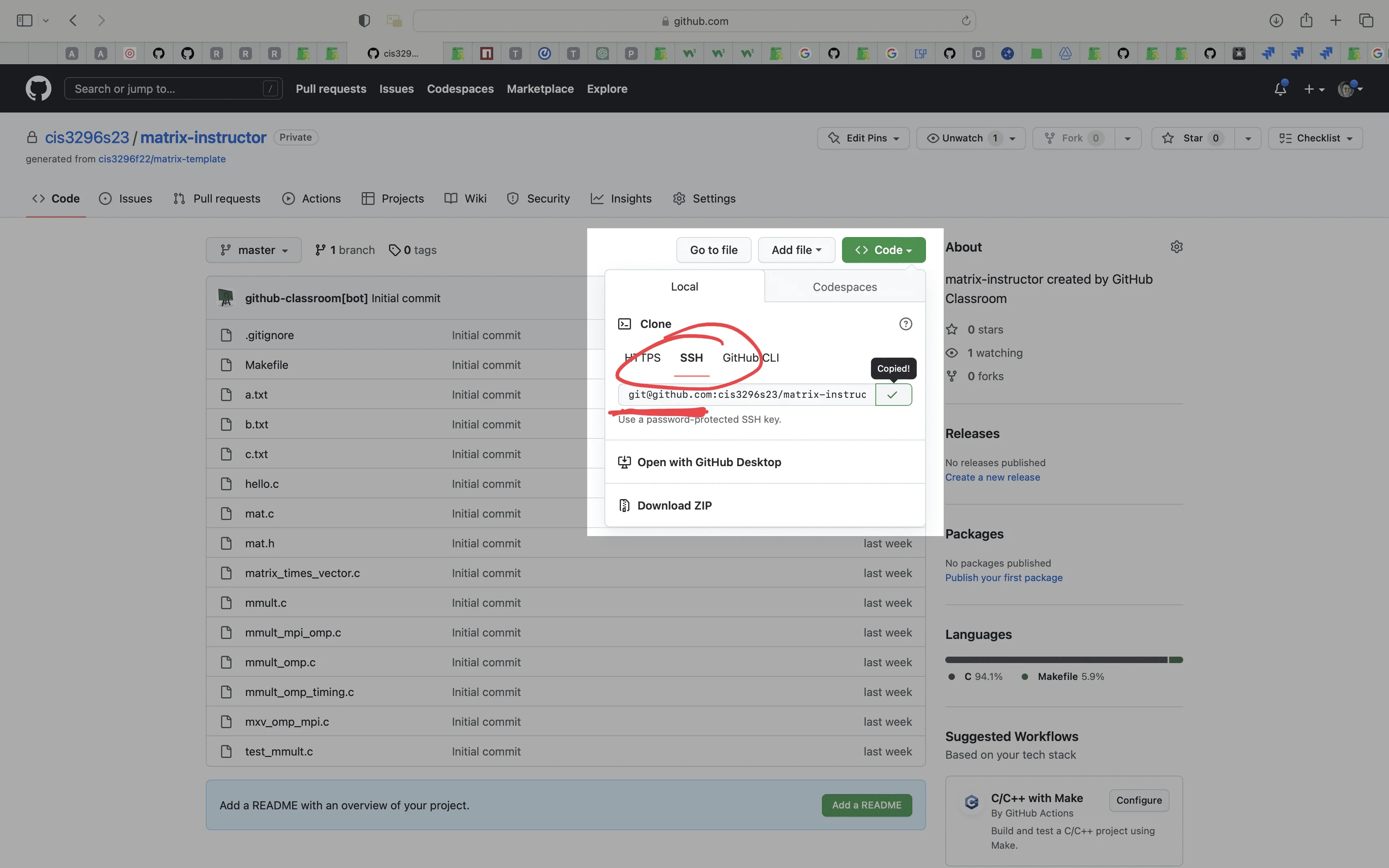

Figure 1.4 Clone the repository making sure that you selected the SSH tab.
git clone git@github.com:Capstone-Projects-2023-Spring/project-YOUR-PROJECT.git

3. VSCode Remote Code editing

In VSCode, install the "Visual Studio Code Remote – SSH" extension by Microsoft. Once installed you will then use it to connect to the GPU Server by clicking the bottom left corner as seen in Figure 2.1, and then clicking wang from the list of connections as seen in Figure 2.2 (please note in the image it shows chinook not wang).

Figure 2.1 VSCode Connect to host button.

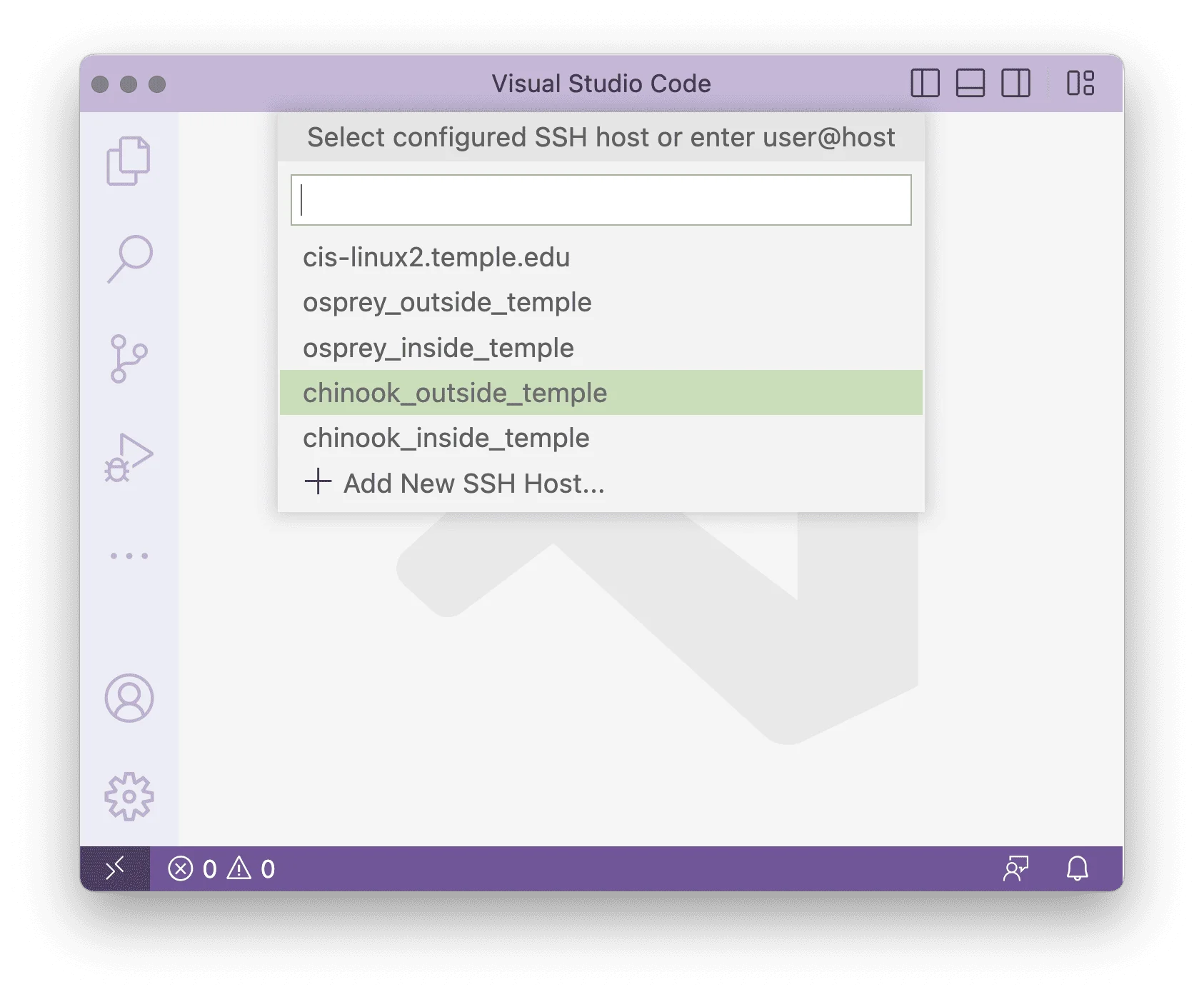

Figure 2.2 Connect to server.

You should now be able to clone and open folders on the server using the VSCode interface. 👨‍💻
